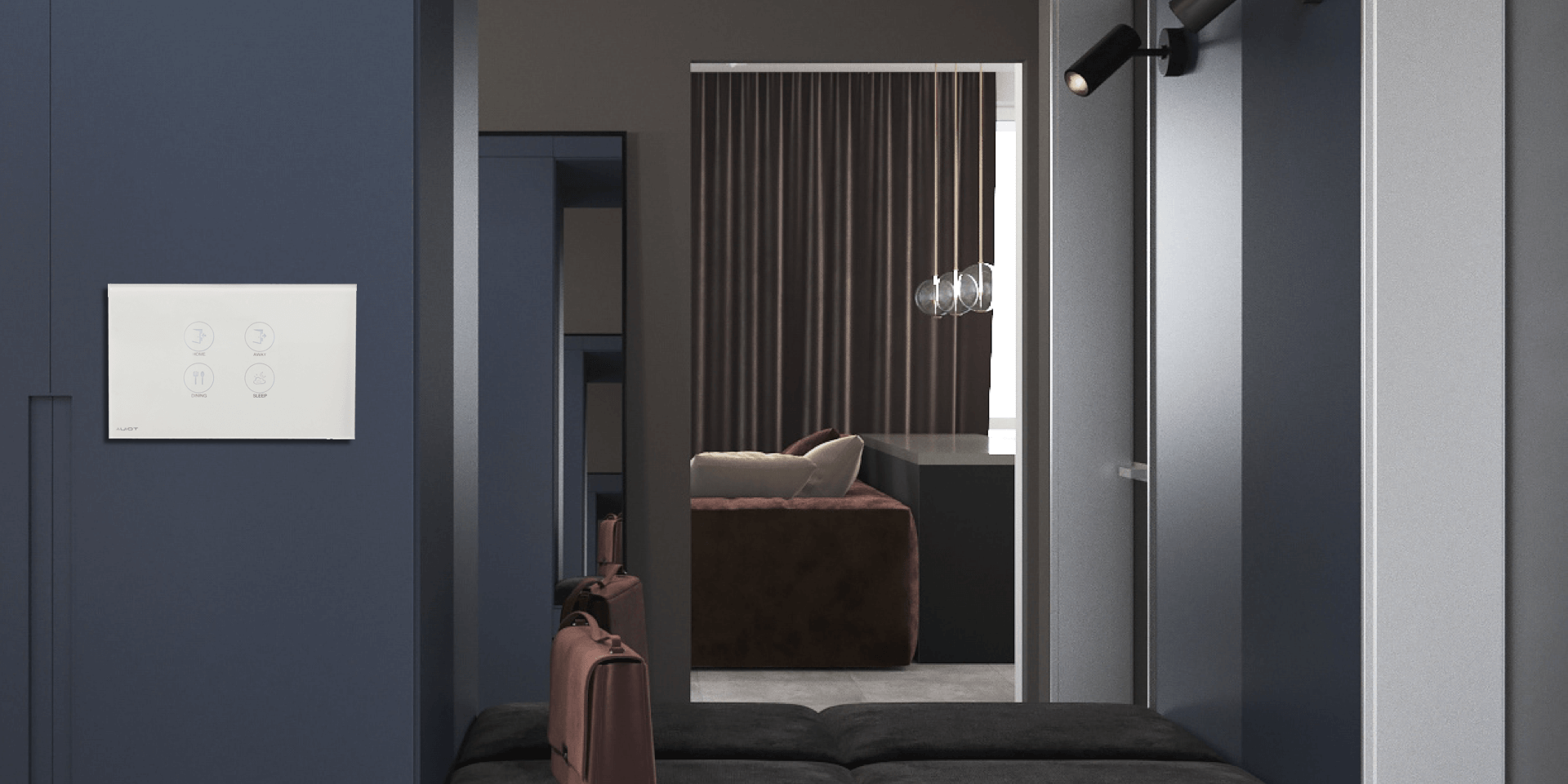

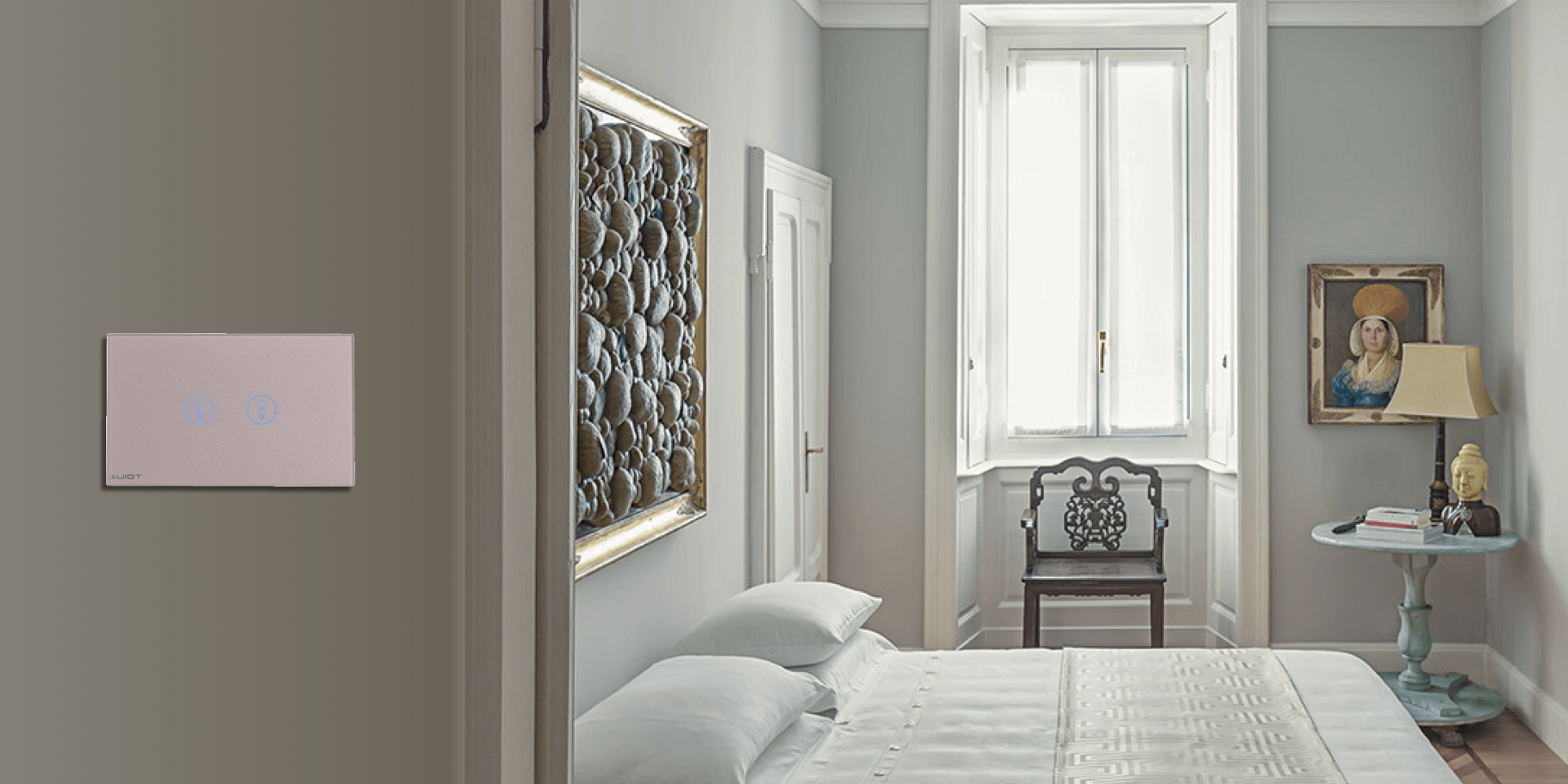

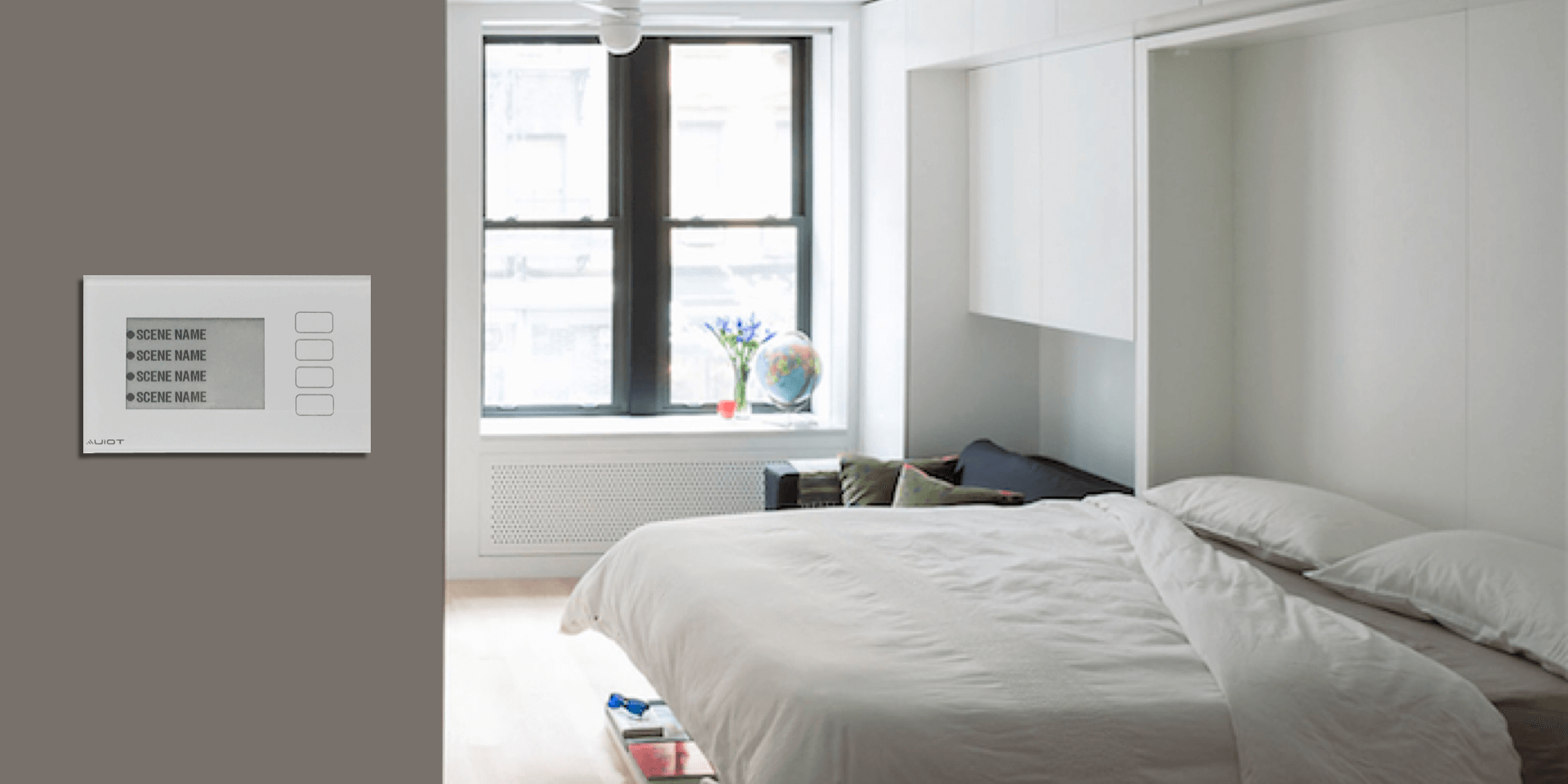

Product Name:
touch scene panel series.
Product model:
Z-AUS-CKCJ-Ⅱ.
Communication method:
Zigbee.
Power supply mode:
85-264V AC 50/60HZ.
Functional features:
zigbee communication to realize different scene control of household appliances.
Transmit power:
≤ 10mW.
Antenna gain:
2DBm.
Working environment:
-10 ℃ to + 50 ℃.
Working humidity:
< 90% RH (non-condensing).
Product size:
120 x 74 x 37.5mm.
Product Name:
Intelligent environment box.
Product model:
Z-AUS-KQHZ-01-Ⅱ.
Communication method:
Zigbee.
(illuminance + temperature and humidity + dust particles).
Power supply:
DC5V/2A USB charger.
Functional features:
zigbee communication, high precision of data acquisition, easy to use.
Maximum power consumption:
1.25W.
Measurement range of dust particles:
0~500ug/m3.
Measuring range of light intensity:
0~65535lux.
Temperature intensity measurement range:
-10 ℃ ~ + 50 ℃.
Humidity intensity measurement range:
30%~90%RH no condensation.
Product size:
90 × 82 × 87mm.
Net weight:
about 129g.
■ Support for zigbee communication.
■ Support for temperature, humidity, light and dust particle detection.
■ Support automatic selection of host frequency and network number.
■ Universal DC5V/2A power adapter.
■ It can be placed directly in the area to be tested.
■ Jointly support the implementation of the alarm function to the mobile phone APP with the host computer.
■ Jointly support the implementation of the international alarm function to the mobile phone APP with the host computer.
