metal-brushed-controller

Three-in-one intelligent thermostat

Manual control / mobile phone remote control / timing control / automatic intelligent control

-Metal wire drawing series

metal-brushed-controller

As firm as a rock for a long time

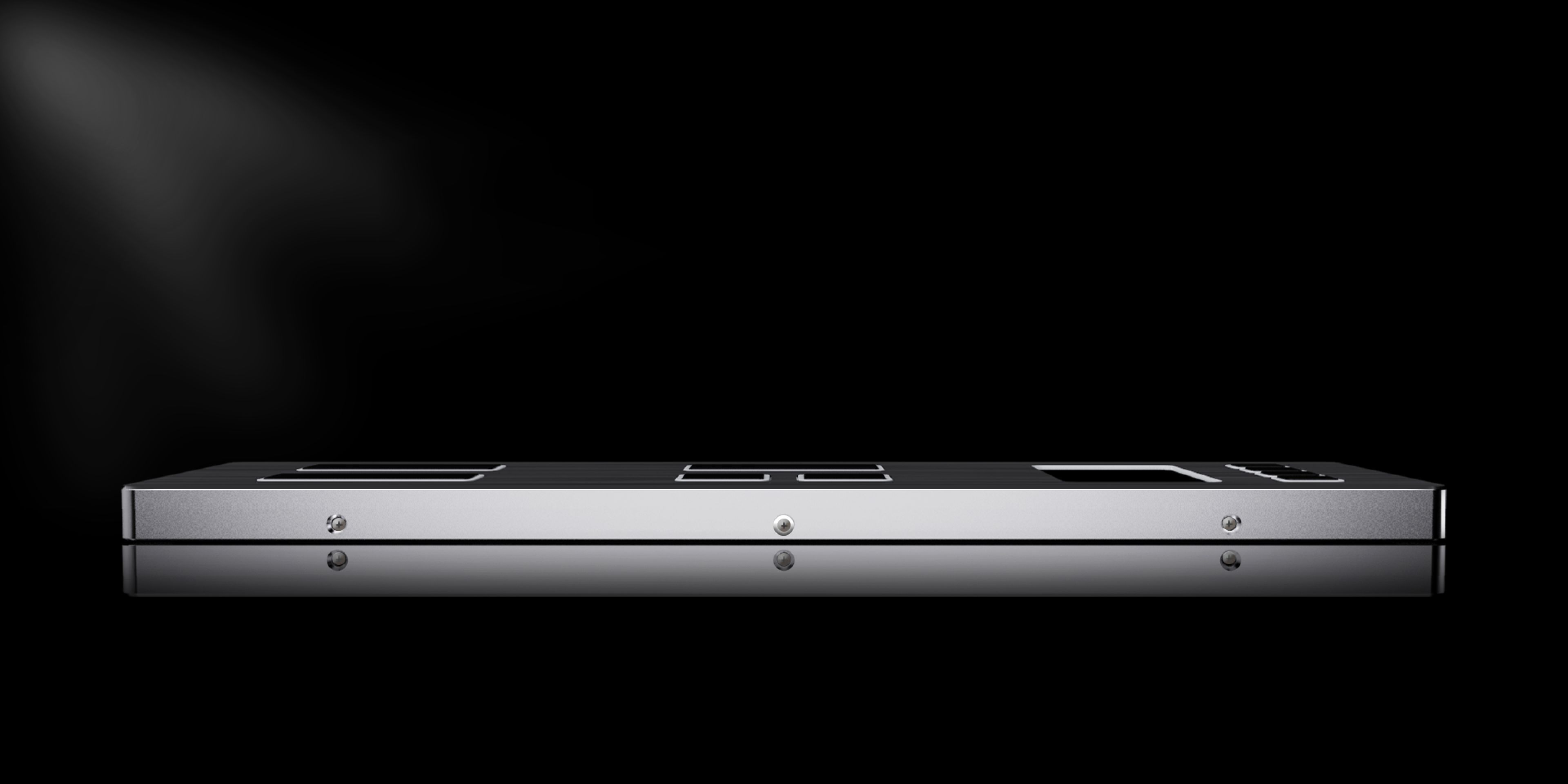

After multi-channel CNC carving polishing, anodizing, metal wire drawing process

Every painstaking effort creates a good thing of intelligence

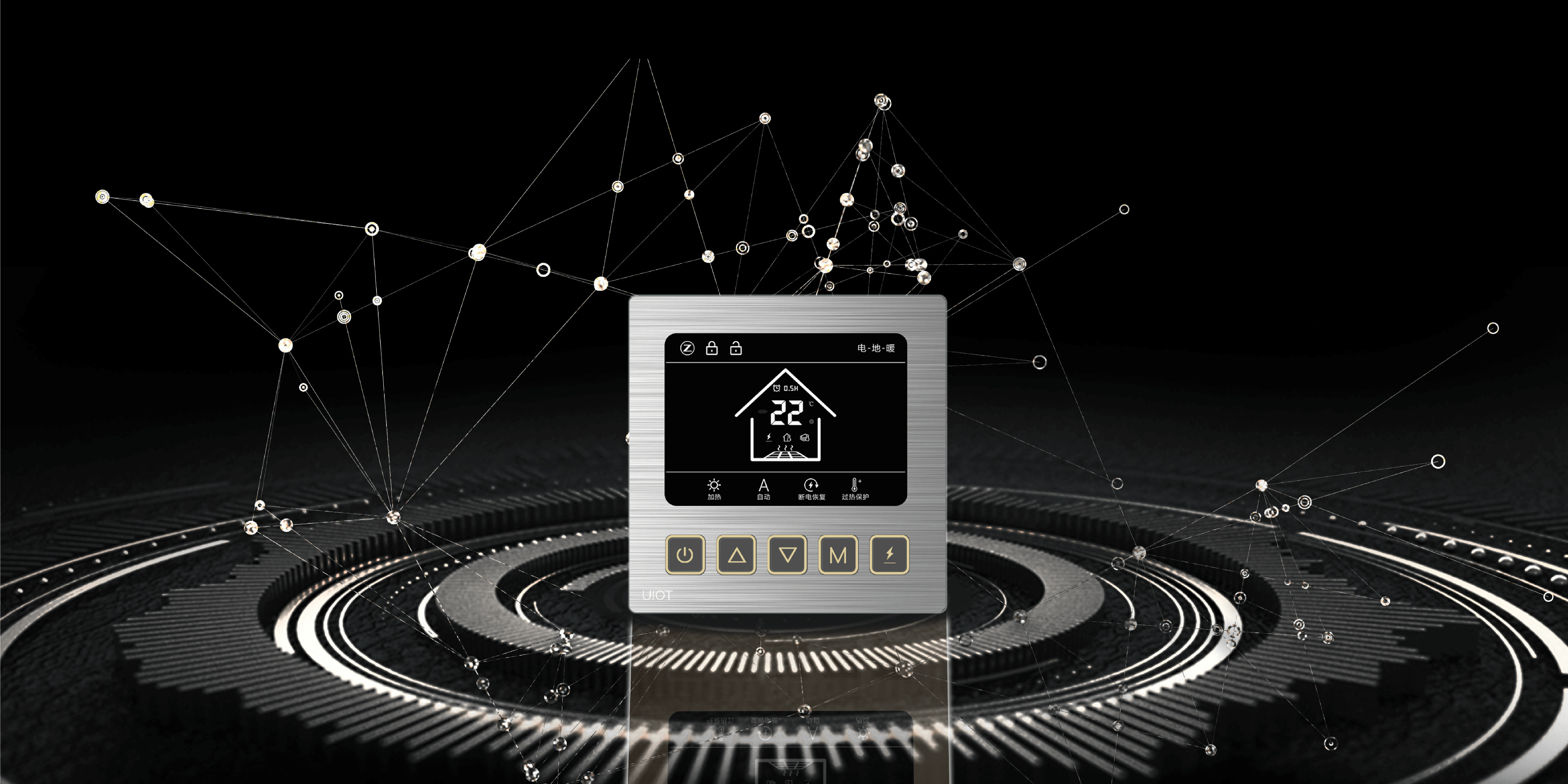

Product Name: Metal wiredrawing liquid crystal intelligent thermostat (water and ground heating version).
Operating voltage: AC100-240V 50/60Hz.
Communication method: ZigBee.
Communication distance: 80mur120m (empty and unsheltered).
Working temperature: -10 ℃ ~ 50 ℃.
Temperature measurement range: 0 ℃ ~ + 50 ℃.
Panel temperature measurement range: 0 ℃ ~ + 50 ℃.
Control mode: air conditioning 485 protocol (supports customization). Xinfeng strong Power 220V/485 protocol (supports customization). 220V/485 protocol for water, ground heating and strong electricity (supports customization).
Thermostat load: fresh air ≤ 200W; water and ground heating ≤ 100W.
Product Name: Metal wiredrawing liquid crystal intelligent thermostat (electric heating version).
Operating voltage: AC100-240V 50/60Hz.
Communication method: ZigBee.
Communication distance: 80mur120m (empty and unsheltered).
Working temperature: -10 ℃ ~ 50 ℃.
Floor temperature measurement range: -10 ℃ ~ + 50 ℃.
Control mode: air conditioning 485 protocol (supports customization). Xinfeng strong Power 220V/485 protocol (supports customization). 220V/485 protocol for electric floor heating and strong electricity (supports customization).
Thermostat load: fresh air ≤ 200W; electric heating ≤ 3000W.

* the above data are from UIOT laboratory, and the actual results may vary slightly depending on the test method.
