Product name:

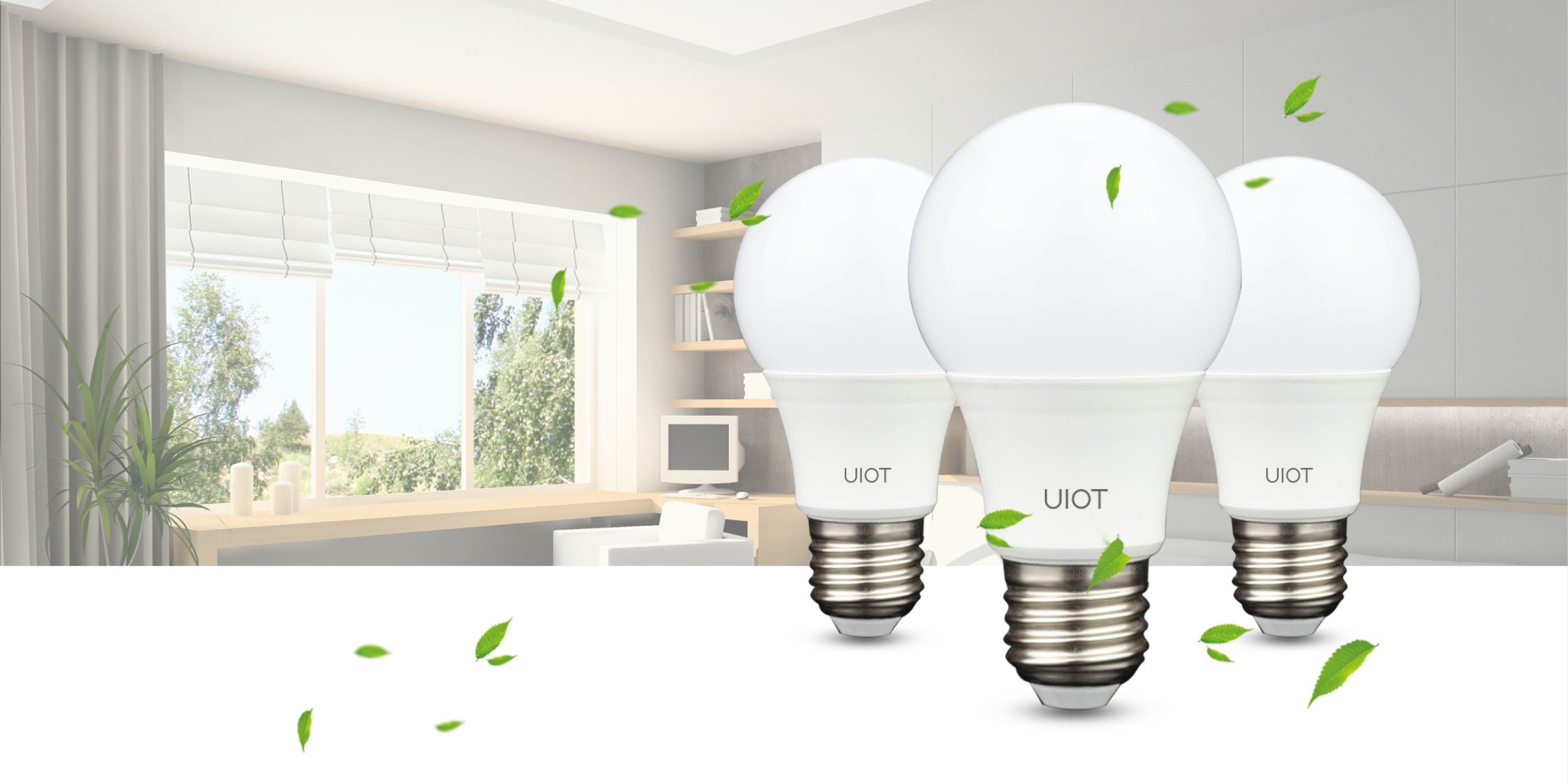

Intelligent dazzling lamp.
Product material:
flame retardant PC.
(installation method) Base:
E27.
Product size:
112 × 60 mm.
Operating voltage:
AC100-240V 50/60HZ.
Communication method:
ZigBee.
Communication distance:
80-120m (empty and unsheltered).
Rated current:
65mA.
Power:
6W.
Product name:
Smart light belt.
Installation method:
lamp slot installation / paste installation.
Product size:
lamp width:
17mm.
Lamp belt length:
2m (can be cut at each 33CM; can be extended to 10m in series).
Working power supply:
adapter DC 24V/1A.
Communication method:
ZigBee.
Communication distance:
80-120m (empty and unsheltered).
Rated power:
20W.
Controller size:
64.8x30.0x20.0mm
Product name:

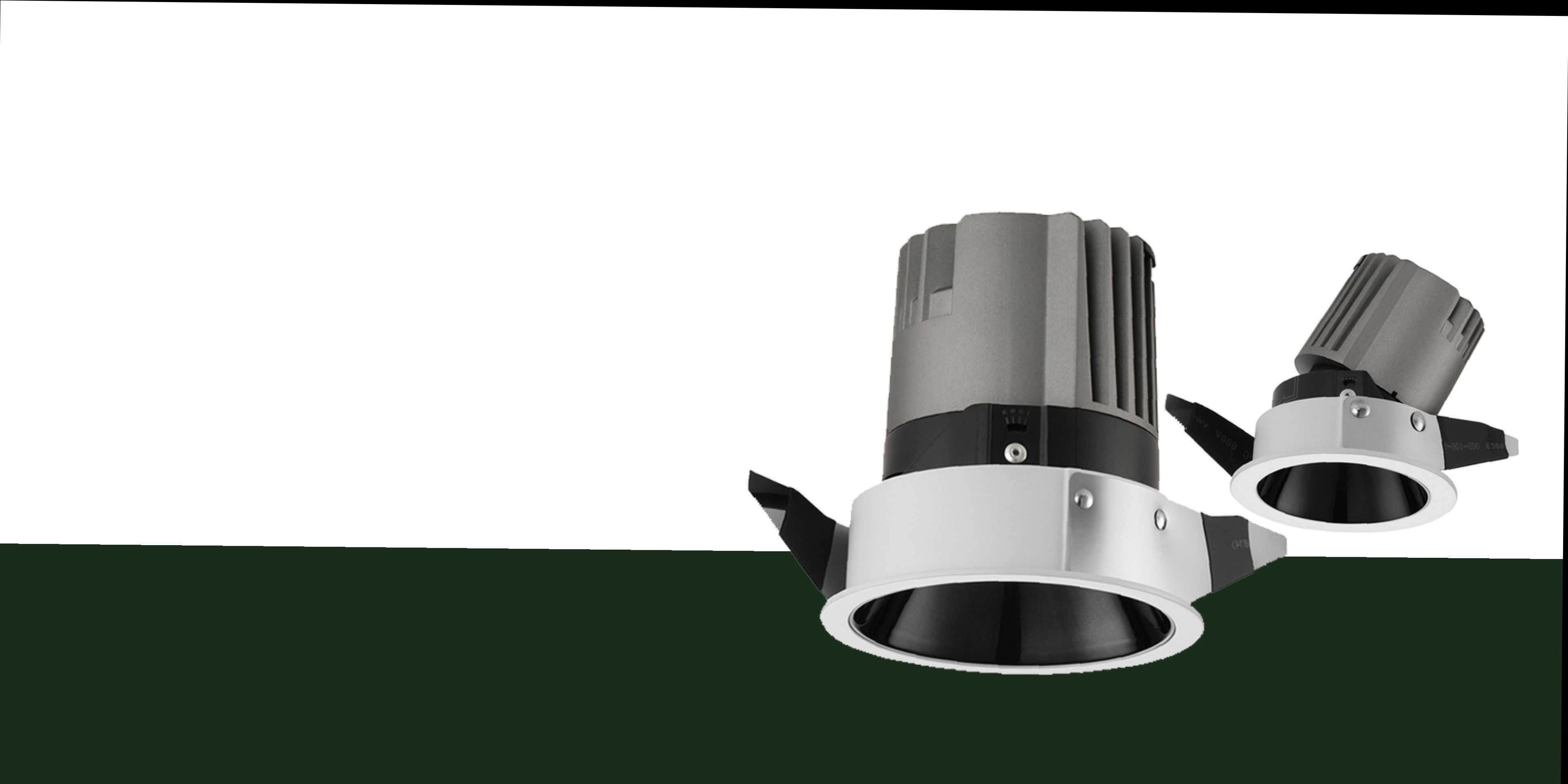

Intelligent dimming spotlight.
Product material:
aviation aluminum.
Installation method:
embedded / guideway installation.
Opening size:
80mm.
Product size:
144.3 × 45.4 × 30.0 mm.
Color temperature:
3000K.
Beam angle:
24 °.
Rated current:
350mA.
Operating voltage:
AC100-240V 50/60HZ.
Communication method:
ZigBee.
Communication distance:
80-120m (empty and unsheltered).
Product name:
Intelligent color temperature spotlight.
Product material:
aviation aluminum.
Installation method:
embedded / guideway installation.
Opening size:
80mm.
Product size:
144.3 × 45.4 × 30.0 mm.
Spotlight power:
7W.
Color temperature range:
3000K-6500K.
Operating voltage:
AC100-240V 50/60HZ.
Communication method:
ZigBee.
Communication distance:
80-120m (empty and unsheltered).
Rated current:
180mA.
Standby power consumption:
1.2W.
Product name:
LED color temperature driver.
Product material:
flame retardant PC.
Product size:
163.6 × 54.2 × 30mm L × W × H (freestanding).
125.8 × 54.2 × 30mm L × W × H (built-in).
Operating voltage:
AC100-240V 50/60HZ.
Rated power:
≤ 38W.
Communication method:
ZigBee.
Communication distance:
80-120m (empty and unsheltered).
Standby power consumption:
1.2W.
Service life:
35000h.
The wiring path that supports the input terminal:
0.5-2.5mm ².
Product name:
LED dimmer.
Product material:
flame retardant PC.
Product size:
l × W × H (built-in): 106x45.4x30mm.
L × W × H (freestanding): 144.3 × 45.4 × 30mm.
Operating voltage:
AC100-240V 50/60HZ.
Communication method:
ZigBee.
Communication distance:
80-120m (empty and unsheltered).
Dimmer load:
2000A.
Dimming voltage:
≥ 1V.
