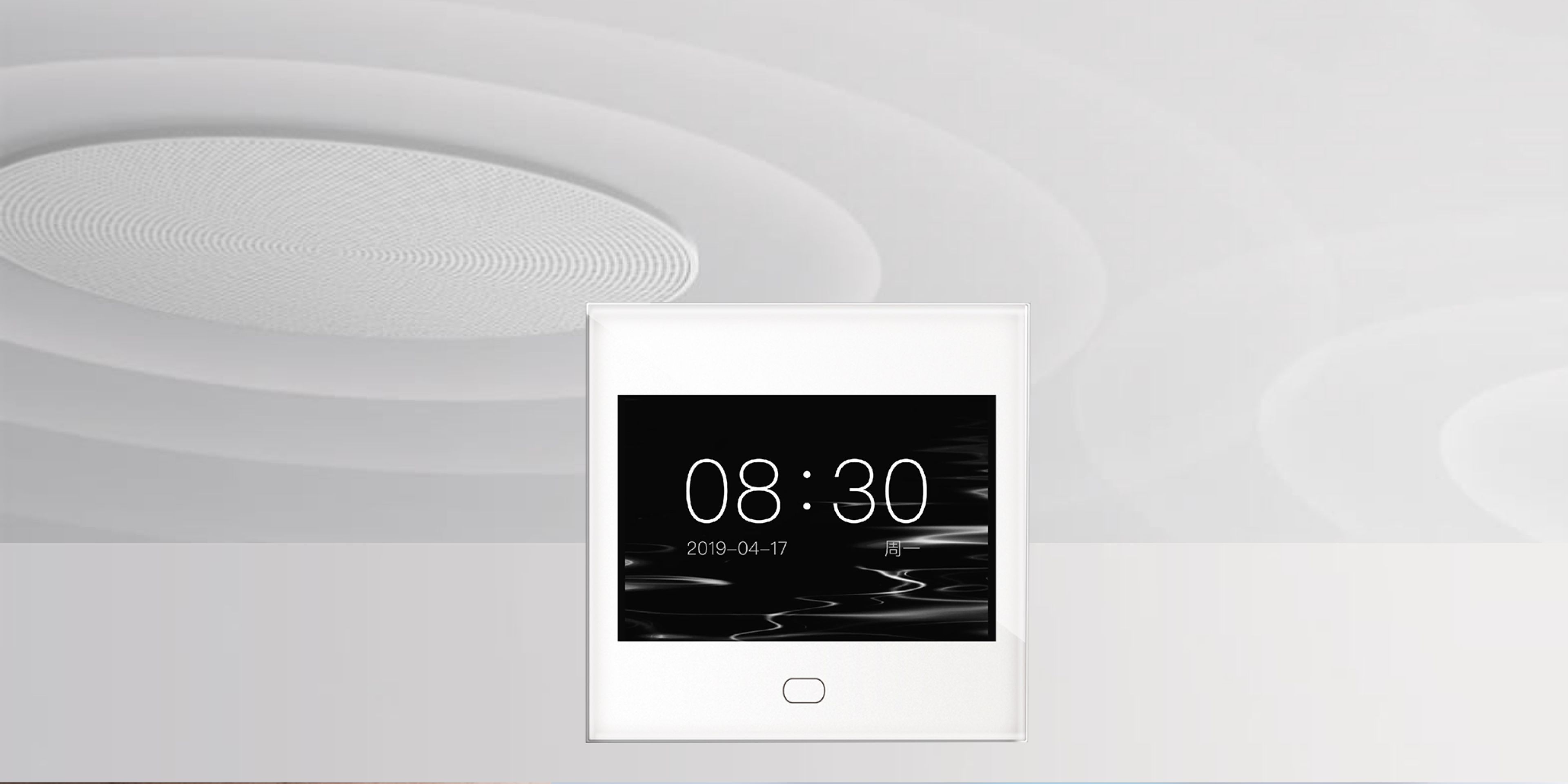

Product name:
Single background music set (3.5 inches).
Product material:
iron and nickel plating.
Product size:
86 × 86mm.
Installation method:
Wall-embedded installation (standard 86 pre-embedded box).
Operating voltage:
AC100-240V 50/60HZ.
Display screen:
3.5 inch capacitive touch screen.
API:
RS485/ doorbell IO/ Audio Audio/ Audio Aux-in.
Communication method:
Ethernet / ZigBee/WIFI/ Bluetooth.
Product name:
Single background music set (5.5 inches).
Product material:
aviation aluminum.
Product size:
139x86x65mm.
Opening size:
139 × 84 × 75mm.
Display screen:
800x800 400PDI G+G5 point touch capacitive screen.
Installation method:
Wall-embedded installation.
Rated power:
25W*2.
Operating voltage:
AC100-240V 50/60HZ.
Rated power 15W ceiling loudspeakers (up to 4 in parallel).
Mixer input and output:
External audio input, one audio output, one dual channel output.
Impedance:
standard external 2 8 Ω.
Touch panel power supply:
5V mainframe power supply.
Communication method:
Ethernet / Zigbee/WIFI/ Bluetooth.
Working temperature range:
-10m - 40 ℃.

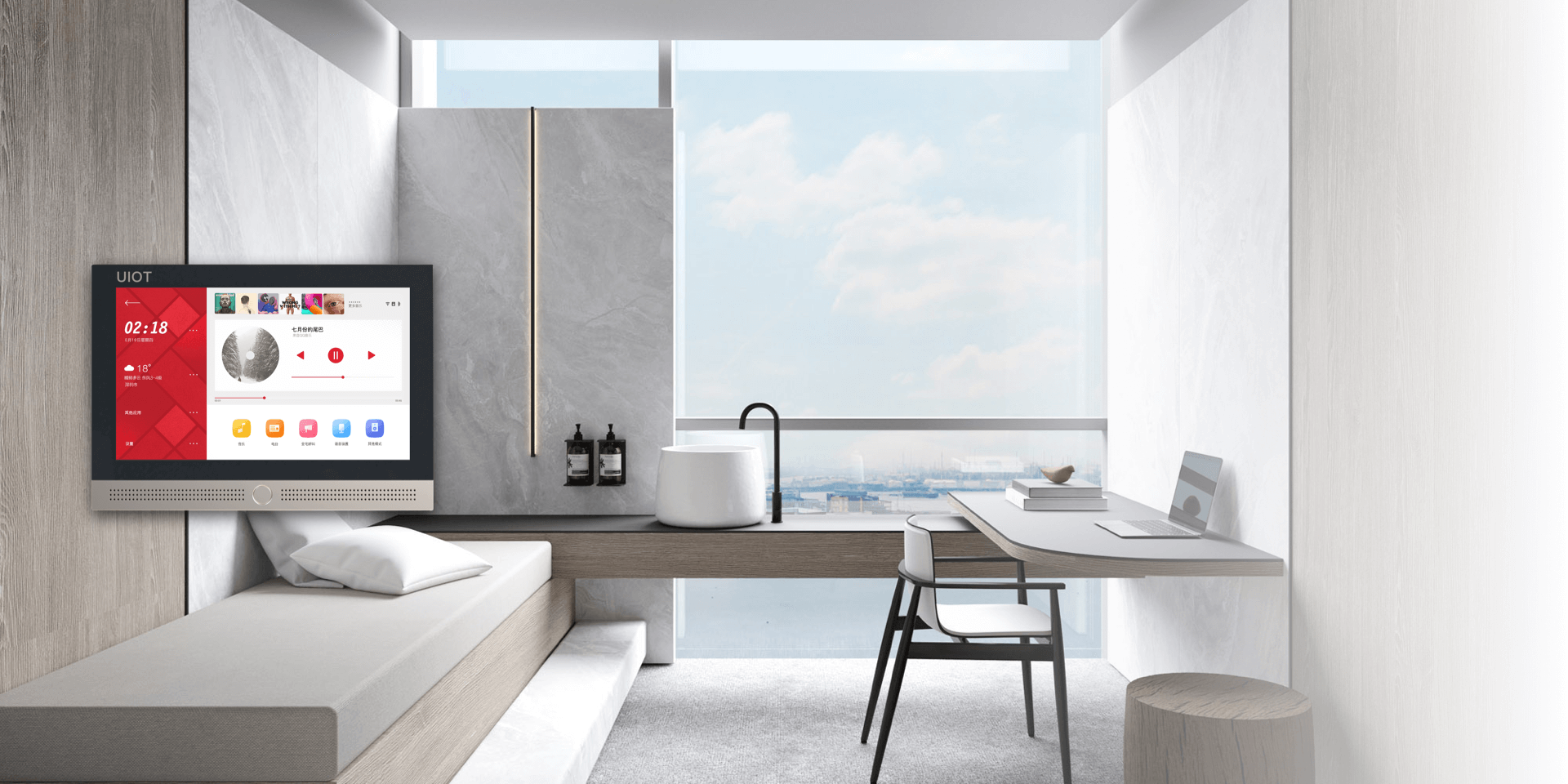

Product name:
Single background music set (7 inches).
Product material:
iron and nickel plating.
Product color:
science fiction silver, rose gold.
Product size:
181x126x12mm.
Digging size:
175x102x62mm.
Installation method:
Wall-embedded installation.
Operating voltage:
AC100-240V 50/60HZ.
Display screen:
1024 × 600 HD IPS LCD.
API:
RS485/ doorbell IO/ Audio Audio/ Audio Aux-in.
Display screen:
1024 × 600 HD IPS LCD.
CPU:
Quad Core Cortex-A17 processor / 1.8Hz.
Communication method:
Ethernet / Zigbee/WIFI/ Bluetooth.
Matching horn parameters:
Product size:
Φ 205 × 80mm.
Opening size:
Φ 180mm.
Rated power:
10-30W.
Impedance:
8 Ω.
Frequency response:
50-20KHz.
Sensitivity SPL:
88dB.
