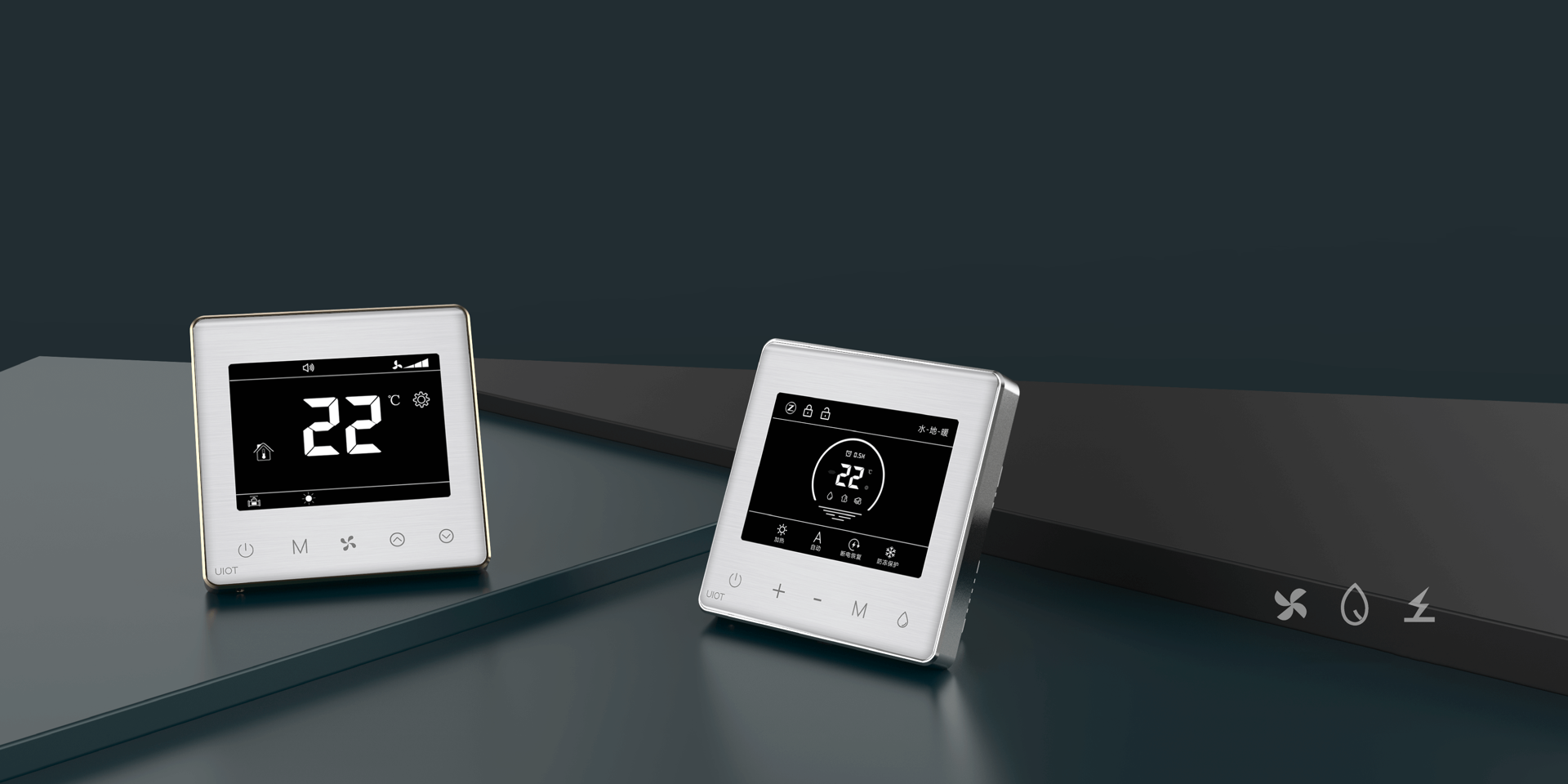

Three-in-one intelligent thermostat Pro series

Manual control / mobile phone remote control / timing control / automatic intelligent control

touch-slim

Intelligently adjust temperature to help sleep

Intelligently adjust the indoor temperature, monitor the indoor air quality is poor, open the fresh air to replace the fresh air, and when the indoor temperature is low, turn on the central air conditioner to adjust the temperature, so that you can sleep peacefully.

Product name: Pro LCD intelligent thermostat (water and ground heating version).
Operating voltage: AC100-240V 50/60Hz.
Communication method: ZigBee.
Communication distance: 80-120m (empty and unsheltered).
Working temperature: -10 ℃ ~ 50 ℃.
Temperature measurement range: 0 ℃ ~ + 50 ℃.
Panel temperature measurement range: 0 ℃ ~ + 50 ℃.
Control mode: air conditioning 485 protocol (supports customization).

Xinfeng strong Power 220V/485 protocol (supports customization).

220V/485 protocol for water, ground heating and strong electricity (supports customization).

Thermostat load: fresh air ≤ 200W; water and ground heating ≤ 100W
Product name: Pro LCD intelligent thermostat (electric heating version).
Operating voltage: AC100-240V 50/60Hz.
Communication method: ZigBee.
Communication distance: 80-120m (empty and unsheltered).
Temperature measurement range: -10 ℃ ~ + 50 ℃.
Floor temperature measurement range: -10 ℃ ~ + 50 ℃.
Control mode: air conditioning 485 protocol (supports customization).

Xinfeng strong Power 220V/485 protocol (supports customization)

220V/485 protocol for electric floor heating and strong electricity (supporting customization)

Thermostat load: fresh air ≤ 200W; electric heating ≤ 3000W.

* the above data are from UIOT laboratory, and the actual results may vary slightly depending on the test method.
