touch-slim

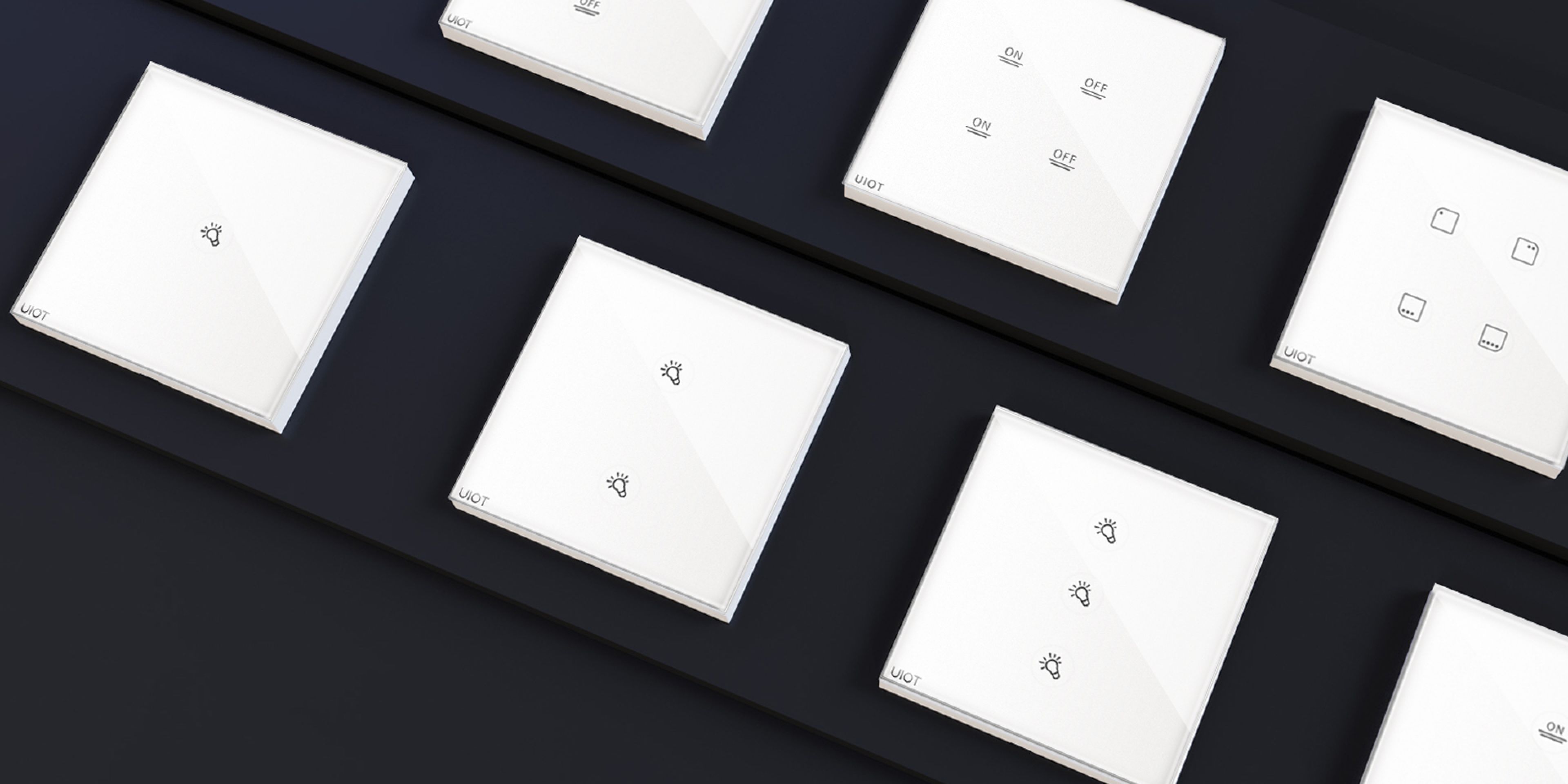

Ultra-thin touch series

Switch | Scene | Curtain motor

touch-slim

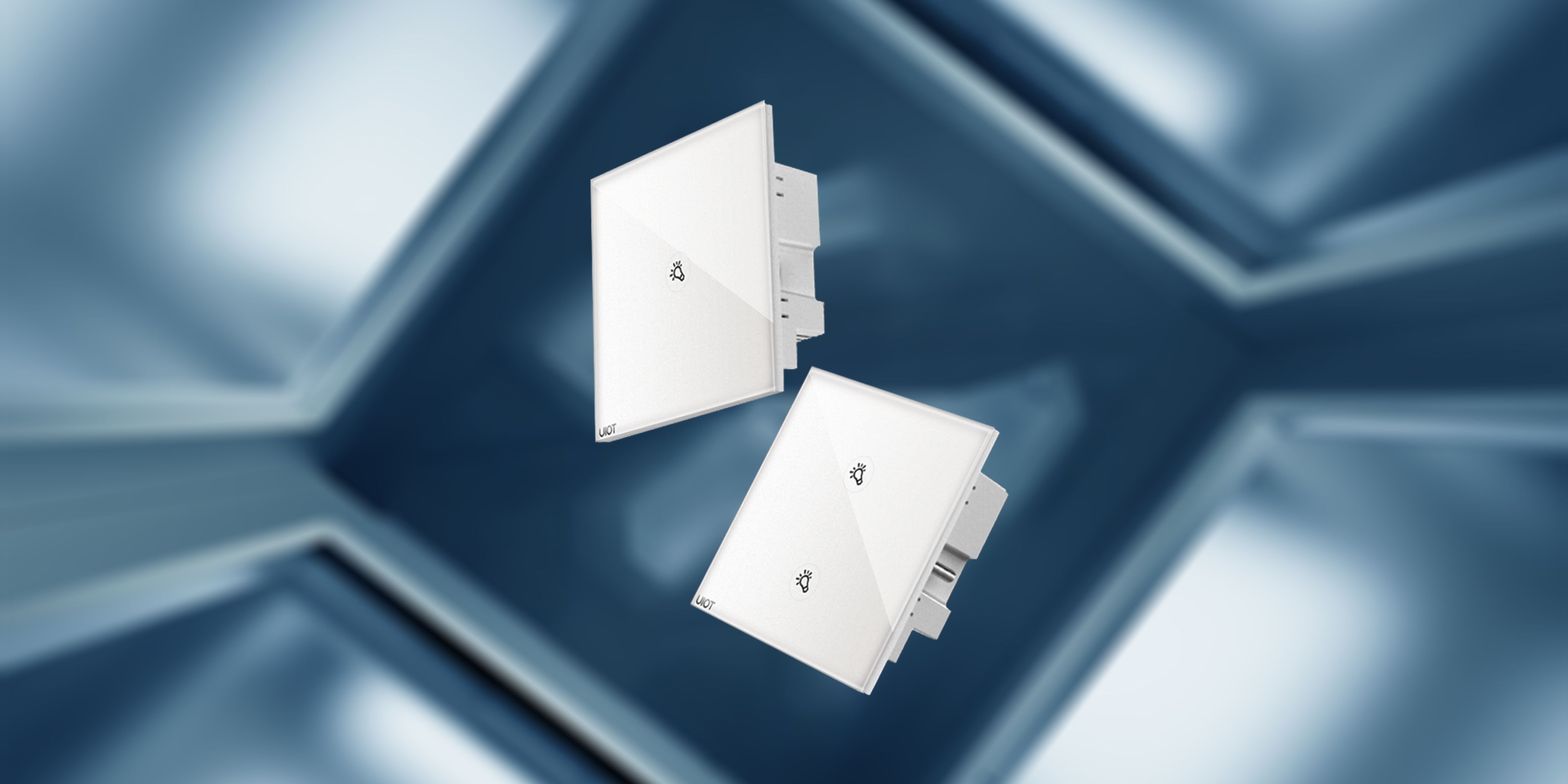

Thickness 6.5mm creates extremely thin myth

The anti-surge switch strengthens the capacitive load capacity, minimizes the interference of the home power grid, prevents the instability of other equipment caused by switching lights, and effectively improves the life of LED lamps and lanterns.

touch-slim

One-click toggle custom scene mode

Product name: Zero fire switch.
Product size: 86 × 86 × 32mm.
Power supply mode: AC100-240V 50/60HZ.
Working temperature: -10 ℃ ~ 50 ℃.
Communication method: ZigBee.
Communication distance: 80-120m (empty and unsheltered).
Single load: resistance ≤ 800W; inductance and capacitance ≤ 800W
Product name: Motor control panel.
Product size: 86 × 86 × 32mm.
Rated voltage: AC100-240V 50/60HZ.
Working temperature: -10 ℃ ~ 50 ℃.
Communication method: ZigBee.
Communication distance: 80-120m (empty and unsheltered).
Motor load: ≤ 200W.
Product name: Four-button scene.
Product size: 86 × 86 × 32mm.
Power supply mode: AC100-240V 50/60HZ.
Working temperature: -10 ℃ ~ 50 ℃.
Communication method: ZigBee.
Communication distance: 80-120m (empty and unsheltered).
Product name: LCD scene panel.
Product size: 86 × 86 × 32mm.
Screen size: 2.4 inches.
Product material: toughened glass.
Installation method: Wall-embedded installation (standard 86 pre-embedded box).
Mode of operation: touch button.
Rated voltage: AC100-240V 50/60Hz.
Communication method: ZigBee.
Communication distance: 80-120m (empty and unsheltered).
Working temperature: -10 ℃ ~ 50 ℃.

* the above data are from UIOT laboratory, and the actual results may vary slightly depending on the test method.
