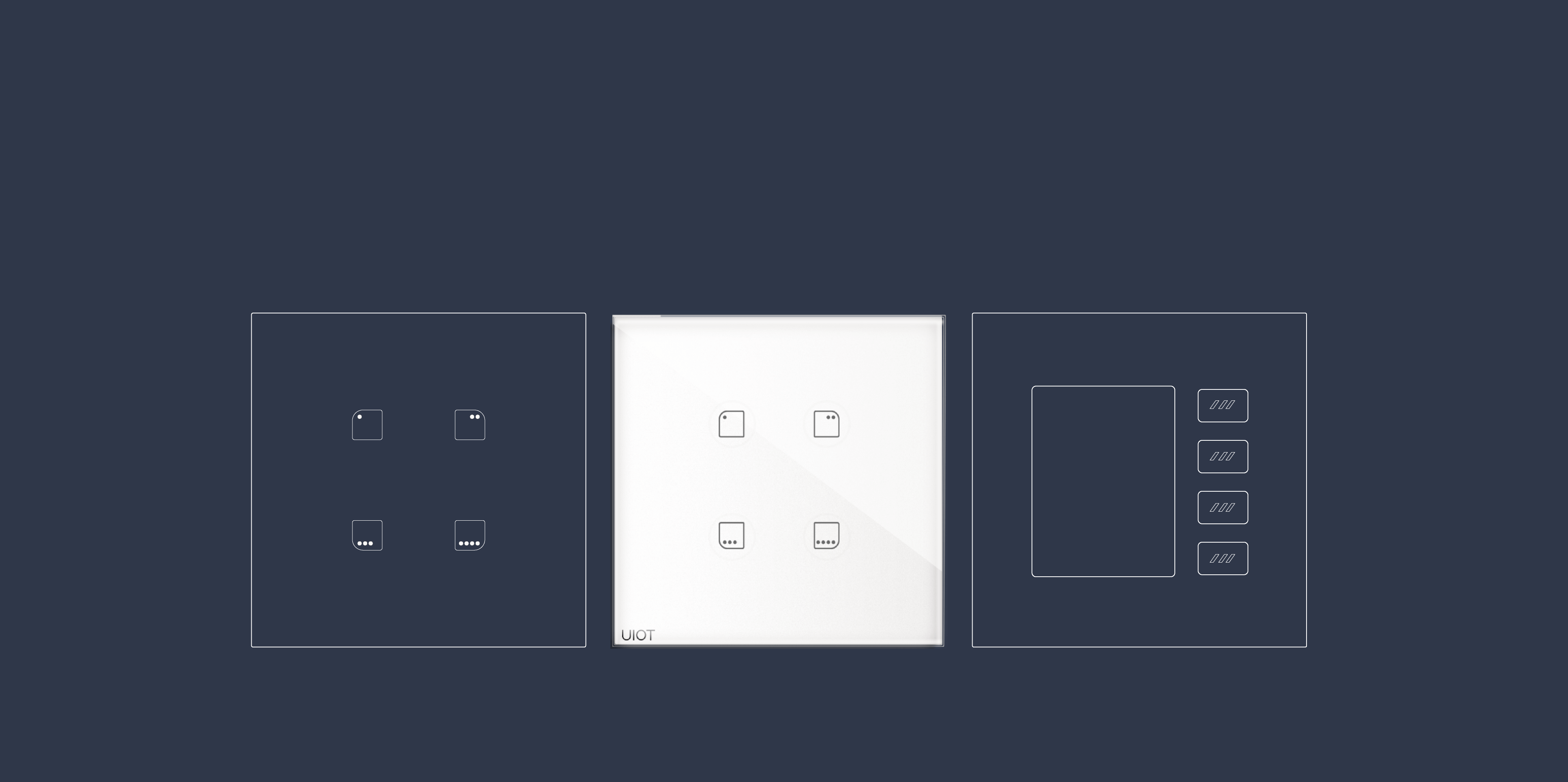

Ultra-thin series of touch scene panel

The use of physical grade deep toughened panel, up to 6.5 Morse hardness, impact resistance is 5 times stronger than that of ordinary glass, anti-scratch, precision laser cutting, so that each line is more meticulous and round.

uitra_thin_scenario

One-click toggle custom scene mode

Product name: LCD scene panel.
Product size: 86 × 86 × 32mm.
Screen size: 2.4 inches.
Product material: toughened glass.
Installation method: Wall-embedded installation (standard 86 pre-embedded box).
Mode of operation: touch button.
Rated voltage: AC100-240V 50/60Hz.
Communication method: ZigBee.
Communication distance: 80-120m (empty and unsheltered).
Working temperature: -10 ℃ ~ 50 ℃.
Product name: Touch scene panel.
Product size: 86 × 86 × 32mm.
Product material: toughened glass.
Installation method: Wall-embedded installation (standard 86 pre-embedded box).
Mode of operation: touch button.
Rated voltage: AC100-240V 50/60Hz.
Communication method: ZigBee.
Communication distance: 80-120m (empty and unsheltered).
Working temperature: -10 ℃ ~ 50 ℃.

* the above data are from UIOT laboratory, and the actual results may vary slightly depending on the test method.
